S7 Joystick v2.0  - Ethernet/Profinet connection only

Send joystick position and buttons to your S7 PLC!

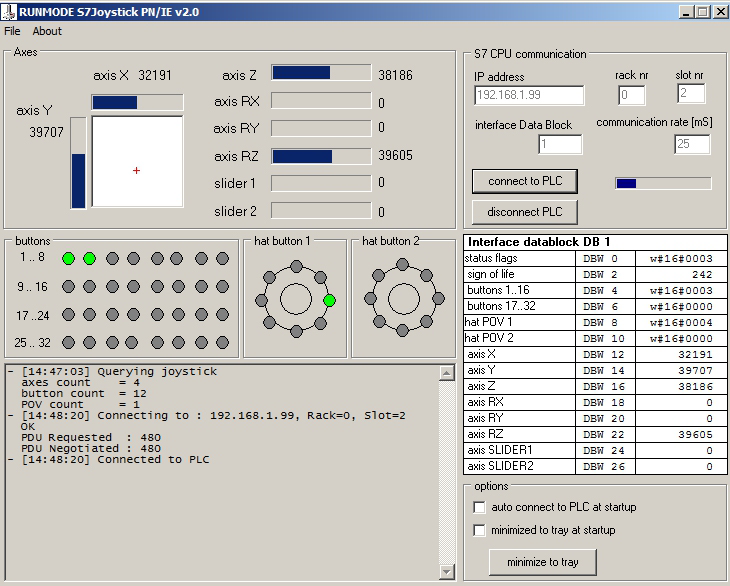

This tool reads position and buttons state from a common PC joystick connected to your PC and send the relevant data to a datablock in your S7 PLC (S7-300/-400 and TIA 1200/1500).


With S7joystick you can use an inexpensive PC joystick to control a device, to ease your commissioning, to test machinery.


Basic joysticks have two X-Y axis and four buttons, advanced joysticks may provide hat (or point-of-view) button, additional axis and more buttons.


Current version of S7joystick manages up to 6 analog axis, two hat buttons sets and up to 32 joystick buttons.


A sign-of-life variable is also provided in order to implement a safe communication check on PLC side.


NOTE: this utility works with Ethernet connection only,
Profibus MPI/DP connections are not supported.

Buy now!

How to order

We accept PayPal or wire transfer payments.

Contact us by email or use the “buy now” button.


Prices

Downloads


Download the manual here


Sample interface data block

Joystick interface area is mapped to a data block, button state and axis value can be easily accessed.


DATA_BLOCK "Joystick"

TITLE =

VERSION : 0.1

  STRUCT

   StatusFlags : STRUCT

    JoystickActive : BOOL ; //TRUE=joystick is detected by Windows

    JoystickDataValid : BOOL ; //TRUE=incoming joystick data are valid

   END_STRUCT ;

   SignOflife : INT ; //watchdog counter

   Buttons : STRUCT

    Button1 : BOOL ; //TRUE=button pressed

    Button2 : BOOL ; //TRUE=button pressed

    Button3 : BOOL ; //TRUE=button pressed

    Button4 : BOOL ; //TRUE=button pressed

    …

    Button31 : BOOL ; //TRUE=button pressed

    Button32 : BOOL ; //TRUE=button pressed

   END_STRUCT ;

   Hat1_POV : STRUCT

    North    : BOOL ; //TRUE=button pressed

    NorthEast: BOOL ; //TRUE=button pressed

    East     : BOOL ; //TRUE=button pressed

    SouthEast: BOOL ; //TRUE=button pressed

    South    : BOOL ; //TRUE=button pressed

    SouthWest: BOOL ; //TRUE=button pressed

    West     : BOOL ; //TRUE=button pressed

    NorthWest: BOOL ; //TRUE=button pressed

   END_STRUCT ;

   AxisX : WORD ; //0..65535, 32767=center position

   AxisY : WORD ; //0..65535, 32767=center position

   AxisZ : WORD ; //0..65535, 32767=center position

   AxisRX : WORD ; //0..65535, 32767=center position

   AxisRY : WORD ; //0..65535, 32767=center position

   AxisRZ : WORD ; //0..65535, 32767=center position

   AxisSLIDER1 : WORD ; //0..65535

   AxisSLIDER2 : WORD ; //0..65535

  END_STRUCT ;


Euro 20.00

Euro 20.00 + 22% IVA/VAT tax = 24.40 Euro

Price and tax (when applicable)

Shipping and billing

The program, registration code and invoice will be sent via e-mail upon payment.

We normally deliver within 24 hours from payment.
